1, Remove screw at base of factory grip. 2. Pull up on grip to remove from factory Grip frame. 3. For HP use M5 allen to remove M6 screw, For SF use M4 allen to remove M5 screw. ***DO NOT REUSE THIS SCREW WITH THE GRIP ADAPTER*** 4. Remove factory grip frame. 5. Place...
****PRIOR TO INSTALLING THE BLACK ARTS DESIGN BARREL BAND ENSURE YOUR AIR RIFLE IS UNLOADED AND IN A SAFE CONFIGURATION!!***** Make sure you have an established zero prior to installation. Remove the thread protector, moderator, or sound suppression device. The silver...

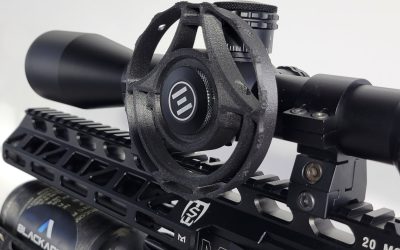

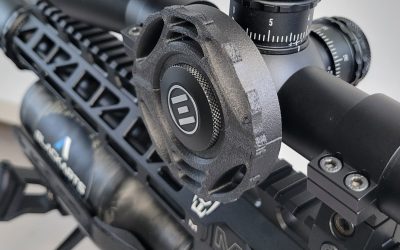

Identify the proper orientation of the adapter as shown in the images below. Matte side faces away from the scope or out. 2. (HELIX) Place the adapter onto Parallax knob as shown in picture, ensure the contours of the adapter are aligned with the contours of the...
AEA Zeus (Gen2) .72 & .58. and Challenger Pro Barrel Band Installation The Zeus Barrel Band is designed to be a tight fitting part. There are rubberized bushings in the barrel section. They are designed to allow a very close tolerance fit as well as provide some...
1. Pre-Assemble the parts as shown below, take note of the orientation and position of the silver arrows. 2. Place the left side component, with brass inserts, on the Saber Tactical Chassis and ensure part is fully seated against the chassis. 3. Take the right side...
Black Arts Design Air Venturi Avenger (Gen2) Barrel Band System Installation Please follow the steps below in installing the Black Arts Design (Gen2) Barrel Band System for the Air Venturi Avenger. Shoot and zero your rifle in its current configuration at your...
